# 04.SpringBoot-Web开发3

# 1.拦截器

# 1.实现

1.编写一个拦截器实现HandlerInterceptor接口

@Slf4j
public class LoginInterceptor implements HandlerInterceptor {
    //目标方法执行之前执行
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        String requestURI = request.getRequestURI();
        log.info("preHandle拦截的请求路径是{}",requestURI);
        HttpSession session = request.getSession();
        Object user = session.getAttribute("loginUser");
        if(user==null){
            session.setAttribute("msg", "请先登录");
            response.sendRedirect("/");
            return false;
        }
        return true;
    }
    //目标方法执行之后
    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
        log.info("postHandle执行{}",modelAndView);
    }

    //页面渲染之后
    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        log.info("afterCompletion执行异常{}",ex);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

2.拦截器注册到容器中（实现WebMvcConfigurer的addInterceptors()）,指定拦截规则（注意，如果是拦截所有，静态资源也会被拦截】

@Configuration
public class registerInterceptor implements WebMvcConfigurer {
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(new LoginInterceptor())
                .addPathPatterns("/**")
                .excludePathPatterns("/","/login","/css/**","/fonts/**","/images/**","/js/**","/error");
    }
}

1
2
3
4
5
6
7
8
9

# 2.原理

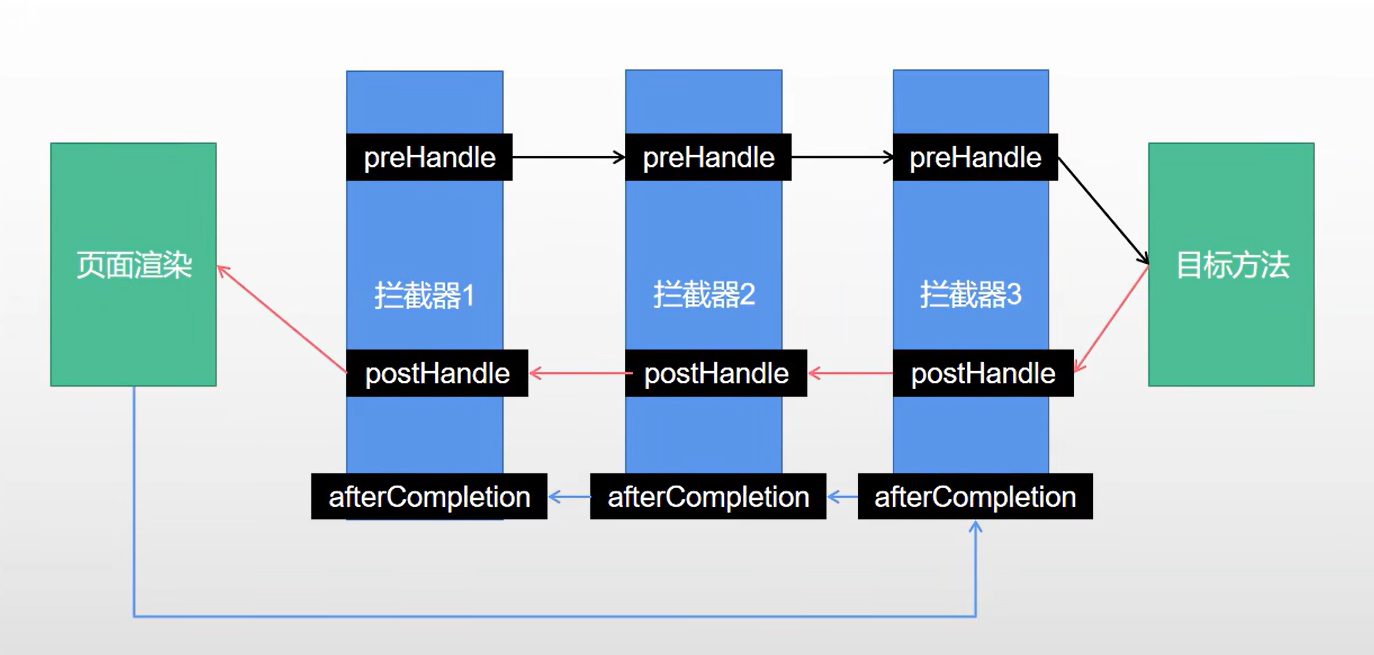

1.根据当前请求，找到 HandlerExecutionChain(可以处理请求的handler以及handler的所有拦截器)

2.先顺序执行所有拦截器的prehandle()方法。

如果当前拦截器 prehandle()返回true，继续执行下一个拦截器的此方法
如果返回false，直接倒序执行所有已经执行了的afterCompletion()方法

3.如果任何一个拦截器返回false，直接跳出不执行目标方法

4.所有拦截器返回true，执行目标方法

5.执行完目标方法开始倒序执行所有拦截器的postHandle方法

6.前面步骤有任何异常，都会直接倒叙触发已经执行了的拦截器的afterCompletion()

7.页面渲染成功也会倒叙触发afterCompletion

DispatcherServlet中涉及到HandlerInterceptor的地方：

public class DispatcherServlet extends FrameworkServlet {

    ...

    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;

        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

                ...

                //该方法内调用HandlerInterceptor的preHandle()
                if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                    return;
                }

                // Actually invoke the handler.
                mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

                ...
                //该方法内调用HandlerInterceptor的postHandle()
                mappedHandler.applyPostHandle(processedRequest, response, mv);
            }
            processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
        }
        catch (Exception ex) {
            //该方法内调用HandlerInterceptor接口的afterCompletion方法
            triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
        }
        catch (Throwable err) {
            //该方法内调用HandlerInterceptor接口的afterCompletion方法
            triggerAfterCompletion(processedRequest, response, mappedHandler,
                    new NestedServletException("Handler processing failed", err));
        }
        finally {
            ...
        }
    }

    private void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response,
            @Nullable HandlerExecutionChain mappedHandler, Exception ex) throws Exception {

        if (mappedHandler != null) {
            //该方法内调用HandlerInterceptor接口的afterCompletion方法
            mappedHandler.triggerAfterCompletion(request, response, ex);
        }
        throw ex;
    }

    private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
            @Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
            @Nullable Exception exception) throws Exception {

        ...

        if (mappedHandler != null) {
            //该方法内调用HandlerInterceptor接口的afterCompletion方法
            // Exception (if any) is already handled..
            mappedHandler.triggerAfterCompletion(request, response, null);
        }
    }


}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70

public class HandlerExecutionChain {

    ...

    boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
        for (int i = 0; i < this.interceptorList.size(); i++) {
            HandlerInterceptor interceptor = this.interceptorList.get(i);
            //HandlerInterceptor的preHandle方法
            if (!interceptor.preHandle(request, response, this.handler)) {

                triggerAfterCompletion(request, response, null);
                return false;
            }
            this.interceptorIndex = i;
        }
        return true;
    }

       void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
            throws Exception {

        for (int i = this.interceptorList.size() - 1; i >= 0; i--) {
            HandlerInterceptor interceptor = this.interceptorList.get(i);

            //HandlerInterceptor接口的postHandle方法
            interceptor.postHandle(request, response, this.handler, mv);
        }
    }

    void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, @Nullable Exception ex) {
        for (int i = this.interceptorIndex; i >= 0; i--) {
            HandlerInterceptor interceptor = this.interceptorList.get(i);
            try {
                //HandlerInterceptor接口的afterCompletion方法
                interceptor.afterCompletion(request, response, this.handler, ex);
            }
            catch (Throwable ex2) {
                logger.error("HandlerInterceptor.afterCompletion threw exception", ex2);
            }
        }
    }


}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

# 2.文件上传

# 1.实现

参考表单

<form role="form" th:action="@{/upload}" method="post" enctype="multipart/form-data">
    <div class="form-group">
        <label for="exampleInputEmail1">邮箱</label>
        <input type="email" name="email" class="form-control" id="exampleInputEmail1" placeholder="Enter email">
    </div>

    <div class="form-group">
        <label for="exampleInputPassword1">名字</label>
        <input type="text" name="username" class="form-control" id="exampleInputPassword1" placeholder="Password">
    </div>

    <div class="form-group">
        <label for="exampleInputFile">头像</label>
        <input type="file" name="headerImg" id="exampleInputFile">
    </div>

    <div class="form-group">
        <label for="exampleInputFile">生活照</label>
        <input type="file" name="photos" multiple>
    </div>

    <div class="checkbox">
        <label>
            <input type="checkbox"> Check me out
        </label>
    </div>
    <button type="submit" class="btn btn-primary">提交</button>
</form>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

controller

    @GetMapping("/form_layouts")
    public String form() {
        return "form/form_layouts";
    }

    @PostMapping("/upload")
    public String upload(@RequestParam("email") String email,
                         @RequestParam("username") String username,
                         @RequestPart("headerImg") MultipartFile headerImg,
                         @RequestPart("photos") MultipartFile[] photos) throws IOException {
        log.info("上传的信息：email={},username={},headerImg={},photos={}",
                email,username,headerImg.getSize(),photos.length);
        if (!headerImg.isEmpty()){
            String headOldName = headerImg.getOriginalFilename();
            //获取前缀
            String suffix=headOldName.substring(headOldName.lastIndexOf("."));
            //拼接新文件名
            String newHeadName= UUID.randomUUID().toString()+suffix;
            //保存文件
            headerImg.transferTo(new File("D:\\images"+File.separator  + newHeadName));
        }
        for (MultipartFile photo : photos) {
            if (!photo.isEmpty()){
                String photoOldName = photo.getOriginalFilename();
                //获取前缀
                assert photoOldName != null;
                String photoSuffix=photoOldName.substring(photoOldName.lastIndexOf("."));
                //拼接新文件名
                String newPhotoName= UUID.randomUUID().toString()+photoSuffix;
                //保存文件
                photo.transferTo(new File("D:\\images" +File.separator + newPhotoName));
            }
        }
        return "main";
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

文件上传相关的配置类：

org.springframework.boot.autoconfigure.web.servlet.MultipartAutoConfiguration org.springframework.boot.autoconfigure.web.servlet.MultipartProperties

文件大小相关配置项：

server:
  port: 8888
spring:
  servlet:
    multipart:
      max-file-size: 10MB
      max-request-size: 100MB

1
2
3
4
5
6
7

# 2.原理

文件的自动配置类MultipartAutoConfiguration配置了文件上传解析器StandardServletMultipartResolver

public class MultipartAutoConfiguration {
    private final MultipartProperties multipartProperties;

    public MultipartAutoConfiguration(MultipartProperties multipartProperties) {
        this.multipartProperties = multipartProperties;
    }

    @Bean
    @ConditionalOnMissingBean({MultipartConfigElement.class, CommonsMultipartResolver.class})
    public MultipartConfigElement multipartConfigElement() {
        return this.multipartProperties.createMultipartConfig();
    }

    @Bean(
        name = {"multipartResolver"}
    )
    @ConditionalOnMissingBean({MultipartResolver.class})
    public StandardServletMultipartResolver multipartResolver() {
        StandardServletMultipartResolver multipartResolver = new StandardServletMultipartResolver();
        multipartResolver.setResolveLazily(this.multipartProperties.isResolveLazily());
        return multipartResolver;
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

public class StandardServletMultipartResolver implements MultipartResolver {
    private boolean resolveLazily = false;
    private boolean strictServletCompliance = false;

    public StandardServletMultipartResolver() {
    }

    public void setResolveLazily(boolean resolveLazily) {
        this.resolveLazily = resolveLazily;
    }

    public void setStrictServletCompliance(boolean strictServletCompliance) {
        this.strictServletCompliance = strictServletCompliance;
    }

    public boolean isMultipart(HttpServletRequest request) {
        return StringUtils.startsWithIgnoreCase(request.getContentType(), this.strictServletCompliance ? "multipart/form-data" : "multipart/");
    }

    public MultipartHttpServletRequest resolveMultipart(HttpServletRequest request) throws MultipartException {
        return new StandardMultipartHttpServletRequest(request, this.resolveLazily);
    }

    public void cleanupMultipart(MultipartHttpServletRequest request) {
        if (!(request instanceof AbstractMultipartHttpServletRequest) || ((AbstractMultipartHttpServletRequest)request).isResolved()) {
            try {
                Iterator var5 = request.getParts().iterator();

                while(var5.hasNext()) {
                    Part part = (Part)var5.next();
                    if (request.getFile(part.getName()) != null) {
                        part.delete();
                    }
                }
            } catch (Throwable var4) {
                Throwable ex = var4;
                LogFactory.getLog(this.getClass()).warn("Failed to perform cleanup of multipart items", ex);
            }
        }

    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

流程分析

public class DispatcherServlet extends FrameworkServlet {

    @Nullable
    private MultipartResolver multipartResolver;

    private void initMultipartResolver(ApplicationContext context) {
        ...

        //这个就是配置类配置的StandardServletMultipartResolver文件上传解析器
        this.multipartResolver = context.getBean(MULTIPART_RESOLVER_BEAN_NAME, MultipartResolver.class);
        ...
    }

    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;//最后finally的回收flag
        ...
        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

            try {
                //做预处理,如果有上传文件
                //就将普通的 HttpServletRequest
                // 包装为 MultipartHttpServletRequest（支持文件参数解析）
                processedRequest = checkMultipart(request);
                multipartRequestParsed = (processedRequest != request);
                // Determine handler for the current request.
                mappedHandler = getHandler(processedRequest);

                ...

                // Determine handler adapter for the current request.
                HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

                ...

                // Actually invoke the handler.
                mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

            }
            ....

        finally {

            ...

            if (multipartRequestParsed) {
                cleanupMultipart(processedRequest);
            }
        }
    }

    protected HttpServletRequest checkMultipart(HttpServletRequest request) throws MultipartException {
        if (this.multipartResolver != null && this.multipartResolver.isMultipart(request)) {
            ...
            return this.multipartResolver.resolveMultipart(request);
            ...
        }
    }

    protected void cleanupMultipart(HttpServletRequest request) {
        if (this.multipartResolver != null) {
            MultipartHttpServletRequest multipartRequest =
                    WebUtils.getNativeRequest(request, MultipartHttpServletRequest.class);
            if (multipartRequest != null) {
                this.multipartResolver.cleanupMultipart(multipartRequest);
            }
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72

mv = ha.handle(processedRequest, response, mappedHandler.getHandler());跳到以下的类

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
        implements BeanFactoryAware, InitializingBean {
    @Override
    protected ModelAndView handleInternal(HttpServletRequest request,
            HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
        ModelAndView mav;
        ...
        mav = invokeHandlerMethod(request, response, handlerMethod);
        ...
        return mav;
    }

    @Nullable
    protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
            HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

        ServletWebRequest webRequest = new ServletWebRequest(request, response);
        try {
            WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
            ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

            ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
            if (this.argumentResolvers != null) {//关注点
                //设置参数解析器
                //用其中的RequestPartMethodArgumentResolver进行后续解析
                invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
            }
            ...
            invocableMethod.invokeAndHandle(webRequest, mavContainer);
            ...

            return getModelAndView(mavContainer, modelFactory, webRequest);
        }
        finally {
            webRequest.requestCompleted();
        }
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

public class ServletInvocableHandlerMethod extends InvocableHandlerMethod {

    ...
    public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,
            Object... providedArgs) throws Exception {
        Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);
        ...
    }

    @Nullable
    public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
            Object... providedArgs) throws Exception {

        Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);
        ...
        return doInvoke(args);//反射调用
    }

    @Nullable
    protected Object doInvoke(Object... args) throws Exception {
        Method method = getBridgedMethod();
        ReflectionUtils.makeAccessible(method);
        return method.invoke(getBean(), args);
        ...
    }

    //处理得出multipart参数，准备稍后的反射调用（@PostMapping标记的上传方法）
    protected Object[] getMethodArgumentValues(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
            Object... providedArgs) throws Exception {

        MethodParameter[] parameters = getMethodParameters();
        ...
        Object[] args = new Object[parameters.length];
        for (int i = 0; i < parameters.length; i++) {
            MethodParameter parameter = parameters[i];
            parameter.initParameterNameDiscovery(this.parameterNameDiscoverer);
            args[i] = findProvidedArgument(parameter, providedArgs);
            if (args[i] != null) {
                continue;
            }
            //关注点1
            if (!this.resolvers.supportsParameter(parameter)) {
                throw new IllegalStateException(formatArgumentError(parameter, "No suitable resolver"));
            }
            try {
                //关注点2
                args[i] = this.resolvers.resolveArgument(parameter, mavContainer, request, this.dataBinderFactory);
            }
            catch (Exception ex) {
                ...
            }
        }
        return args;
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

public class RequestPartMethodArgumentResolver extends AbstractMessageConverterMethodArgumentResolver {

    //对应上面代码关注点1
    @Override
    public boolean supportsParameter(MethodParameter parameter) {
        //标注@RequestPart的参数
        if (parameter.hasParameterAnnotation(RequestPart.class)) {
            return true;
        }
        else {
            if (parameter.hasParameterAnnotation(RequestParam.class)) {
                return false;
            }
            return MultipartResolutionDelegate.isMultipartArgument(parameter.nestedIfOptional());
        }
    }

    //对应上面代码关注点2
    @Override
    @Nullable
    public Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
            NativeWebRequest request, @Nullable WebDataBinderFactory binderFactory) throws Exception {

        HttpServletRequest servletRequest = request.getNativeRequest(HttpServletRequest.class);
        Assert.state(servletRequest != null, "No HttpServletRequest");

        RequestPart requestPart = parameter.getParameterAnnotation(RequestPart.class);
        boolean isRequired = ((requestPart == null || requestPart.required()) && !parameter.isOptional());

        String name = getPartName(parameter, requestPart);
        parameter = parameter.nestedIfOptional();
        Object arg = null;

        //封装成MultipartFile类型的对象作参数
        Object mpArg = MultipartResolutionDelegate.resolveMultipartArgument(name, parameter, servletRequest);
        if (mpArg != MultipartResolutionDelegate.UNRESOLVABLE) {
            arg = mpArg;
        }

        ...

        return adaptArgumentIfNecessary(arg, parameter);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

public final class MultipartResolutionDelegate {
    ...

    @Nullable
    public static Object resolveMultipartArgument(String name, MethodParameter parameter, HttpServletRequest request)
            throws Exception {

        MultipartHttpServletRequest multipartRequest =
                WebUtils.getNativeRequest(request, MultipartHttpServletRequest.class);
        boolean isMultipart = (multipartRequest != null || isMultipartContent(request));

        if (MultipartFile.class == parameter.getNestedParameterType()) {
            if (!isMultipart) {
                return null;
            }
            if (multipartRequest == null) {
                multipartRequest = new StandardMultipartHttpServletRequest(request);
            }
            return multipartRequest.getFile(name);
        }
        else if (isMultipartFileCollection(parameter)) {
            if (!isMultipart) {
                return null;
            }
            if (multipartRequest == null) {
                multipartRequest = new StandardMultipartHttpServletRequest(request);
            }
            List<MultipartFile> files = multipartRequest.getFiles(name);
            return (!files.isEmpty() ? files : null);
        }
        else if (isMultipartFileArray(parameter)) {
            if (!isMultipart) {
                return null;
            }
            if (multipartRequest == null) {
                multipartRequest = new StandardMultipartHttpServletRequest(request);
            }
            List<MultipartFile> files = multipartRequest.getFiles(name);
            return (!files.isEmpty() ? files.toArray(new MultipartFile[0]) : null);
        }
        else if (Part.class == parameter.getNestedParameterType()) {
            if (!isMultipart) {
                return null;
            }
            return request.getPart(name);
        }
        else if (isPartCollection(parameter)) {
            if (!isMultipart) {
                return null;
            }
            List<Part> parts = resolvePartList(request, name);
            return (!parts.isEmpty() ? parts : null);
        }
        else if (isPartArray(parameter)) {
            if (!isMultipart) {
                return null;
            }
            List<Part> parts = resolvePartList(request, name);
            return (!parts.isEmpty() ? parts.toArray(new Part[0]) : null);
        }
        else {
            return UNRESOLVABLE;
        }
    }

    ...

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

# 3.错误处理

# 1.默认错误处理机制

默认情况下，Spring Boot提供/error处理所有错误的映射
机器客户端，它将生成JSON响应，其中包含错误，HTTP状态和异常消息的详细信息。对于浏览器客户端，响应一个“ whitelabel”错误视图，以HTML格式呈现相同的数据

{
  "timestamp": "2020-11-22T05:53:28.416+00:00",
  "status": 404,
  "error": "Not Found",
  "message": "No message available",
  "path": "/asadada"
}

1
2
3
4
5
6
7

要对其进行自定义，添加View解析为error
要完全替换默认行为，可以实现 ErrorController 并注册该类型的Bean定义，或添加ErrorAttributes类型的组件以使用现有机制但替换其内容。
/templates/error/下的4xx，5xx页面会被自动解析

# 2.各种组件的功能

ErrorMVCAutoConfiguration自动配置异常处理规则

容器中的组件：DefaultErrorAttributes->id：errorAttributes
- public class DefaultErrorAttributes implements ErrorAttributes, HandlerExceptionResolver, Ordered
- 其中定义了一些错误页面包含的东西（具体错误细节，状态码，错误路径等）

容器中的组件：BasicErrorController->id：basicErrorController（json+白页适配响应）

处理默认/error的请求，server.error.path不配置默认为空（@RequestMapping({"${server.error.path:${error.path:/error}}"})

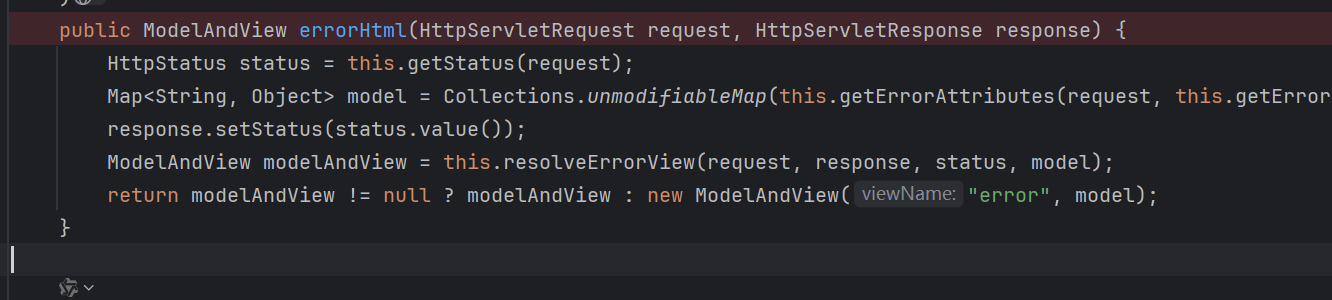

页面响应：（public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response)）

上图响应默认的视图名称为error，正好容器中自动配置了组件View->id是error（响应默认错误页也就是白页），容器中又存放了组件BeanNameViewResolver(视图解析器)；可按照返回的视图名作为id查找view

 @Configuration(
        proxyBeanMethods = false
    )
    @ConditionalOnProperty(
        prefix = "server.error.whitelabel",
        name = {"enabled"},
        matchIfMissing = true
    )
    @Conditional({ErrorTemplateMissingCondition.class})
    protected static class WhitelabelErrorViewConfiguration {
        private final StaticView defaultErrorView = new StaticView();

        protected WhitelabelErrorViewConfiguration() {
        }

        @Bean(
            name = {"error"}
        )
        @ConditionalOnMissingBean(
            name = {"error"}
        )
        public View defaultErrorView() {
            return this.defaultErrorView;
        }

        @Bean
        @ConditionalOnMissingBean
        public BeanNameViewResolver beanNameViewResolver() {
            BeanNameViewResolver resolver = new BeanNameViewResolver();
            resolver.setOrder(2147483637);
            return resolver;
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

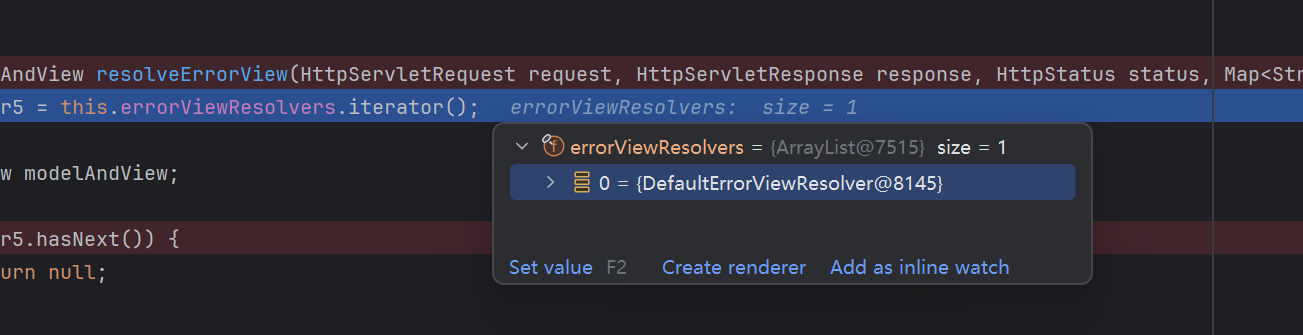

容器中的组件：DefaultErrorViewResolver->id:conventionErrorViewResolver
- 如果发送错误，会以HTTP的状态码作为视图页地址（viewName）,找到真正的页面比如（error/404，5xx.html）

# 3.异常处理步骤

1.执行目标方法，目标方法期间有任何异常都会被catch，而且标志当前请求结束，并且用dispatchException包装起来

2.进入视图解析流程（页面渲染）

    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            try {
                ModelAndView mv = null;
                Exception dispatchException = null;

                try {
                    processedRequest = this.checkMultipart(request);
                    multipartRequestParsed = processedRequest != request;
                    mappedHandler = this.getHandler(processedRequest);
                    if (mappedHandler == null) {
                        this.noHandlerFound(processedRequest, response);
                        return;
                    }

                    HandlerAdapter ha = this.getHandlerAdapter(mappedHandler.getHandler());
                    String method = request.getMethod();
                    boolean isGet = HttpMethod.GET.matches(method);
                    if (isGet || HttpMethod.HEAD.matches(method)) {
                        long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                        if ((new ServletWebRequest(request, response)).checkNotModified(lastModified) && isGet) {
                            return;
                        }
                    }

                    if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                        return;
                    }
                     //对方法进行处理
                    mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
                    if (asyncManager.isConcurrentHandlingStarted()) {
                        return;
                    }

                    this.applyDefaultViewName(processedRequest, mv);
                    mappedHandler.applyPostHandle(processedRequest, response, mv);
                } catch (Exception var20) {
                    Exception ex = var20;
                    //包装异常
                    dispatchException = ex;
                } catch (Throwable var21) {
                    Throwable err = var21;
                    dispatchException = new NestedServletException("Handler dispatch failed", err);
                }
                 //对应2.视图解析流程
                this.processDispatchResult(processedRequest, response, mappedHandler, mv, (Exception)dispatchException);
            } catch (Exception var22) {
                Exception ex = var22;
                this.triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
            } catch (Throwable var23) {
                Throwable err = var23;
                this.triggerAfterCompletion(processedRequest, response, mappedHandler, new NestedServletException("Handler processing failed", err));
            }

        } finally {
            if (asyncManager.isConcurrentHandlingStarted()) {
                if (mappedHandler != null) {
                    mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
                }
            } else if (multipartRequestParsed) {
                this.cleanupMultipart(processedRequest);
            }

        }
    }

3.processDispatchResult(processedRequest, response, mappedHandler, mv, (Exception)dispatchException);方法内处理发送的异常，处理完返回ModelAndView

private void processDispatchResult(HttpServletRequest request, HttpServletResponse response, @Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv, @Nullable Exception exception) throws Exception {
        boolean errorView = false;
        if (exception != null) {
            if (exception instanceof ModelAndViewDefiningException) {
                this.logger.debug("ModelAndViewDefiningException encountered", exception);
                mv = ((ModelAndViewDefiningException)exception).getModelAndView();
            } else {
                Object handler = mappedHandler != null ? mappedHandler.getHandler() : null;
                 //处理异常
                 mv = this.processHandlerException(request, response, handler, exception);
                errorView = mv != null;
            }
        }

1
2
3
4
5
6
7
8
9
10
11
12
13

下面是处理异常的具体流程分析

1.遍历所有的handlerExceptionResolvers,看谁能处理当前异常

   @Nullable
    protected ModelAndView processHandlerException(HttpServletRequest request, HttpServletResponse response, @Nullable Object handler, Exception ex) throws Exception {
        request.removeAttribute(HandlerMapping.PRODUCIBLE_MEDIA_TYPES_ATTRIBUTE);
        ModelAndView exMv = null;
        if (this.handlerExceptionResolvers != null) {
            Iterator var6 = this.handlerExceptionResolvers.iterator();

            while(var6.hasNext()) {
                HandlerExceptionResolver resolver = (HandlerExceptionResolver)var6.next();
                exMv = resolver.resolveException(request, response, handler, ex);
                if (exMv != null) {
                    break;
                }
            }
        }

        if (exMv != null) {
            if (exMv.isEmpty()) {
                   //将异常信息存入作用域
                request.setAttribute(EXCEPTION_ATTRIBUTE, ex);
                return null;
            } else {
                if (!exMv.hasView()) {
                    String defaultViewName = this.getDefaultViewName(request);
                    if (defaultViewName != null) {
                        exMv.setViewName(defaultViewName);
                    }
                }

                if (this.logger.isTraceEnabled()) {
                    this.logger.trace("Using resolved error view: " + exMv, ex);
                } else if (this.logger.isDebugEnabled()) {
                    this.logger.debug("Using resolved error view: " + exMv);
                }

                WebUtils.exposeErrorRequestAttributes(request, ex, this.getServletName());
                return exMv;
            }
        } else {
               //抛出
            throw ex;
        }
    }  }
        }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

2.系统默认的异常解析器

1.DefaultErrorAttributes先来处理异常。把异常信息保存到request域，并且返回null;

public class DefaultErrorAttributes implements ErrorAttributes, HandlerExceptionResolver, Ordered {
    ...
    public ModelAndView resolveException(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) {
        this.storeErrorAttributes(request, ex);
        return null;
    }

    private void storeErrorAttributes(HttpServletRequest request, Exception ex) {
        request.setAttribute(ERROR_ATTRIBUTE, ex);//把异常信息保存到request域
    }
    ...

}

1
2
3
4
5
6
7
8
9
10
11
12
13

2.默认没有人能处理异常，所以异常会被抛出

1.底层最终发送/error请求，被底层的BasicErrorController处理

@Controller
@RequestMapping("${server.error.path:${error.path:/error}}")
public class BasicErrorController extends AbstractErrorController {

    @RequestMapping(produces = MediaType.TEXT_HTML_VALUE)
    public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response) {
       HttpStatus status = getStatus(request);
       Map<String, Object> model = Collections
             .unmodifiableMap(getErrorAttributes(request, getErrorAttributeOptions(request, MediaType.TEXT_HTML)));
       response.setStatus(status.value());
       ModelAndView modelAndView = resolveErrorView(request, response, status, model);
       //如果/template/error内没有4**.html或5**.html，
       //modelAndView为空，最终还是返回viewName为error的modelAndView
       return (modelAndView != null) ? modelAndView : new ModelAndView("error", model);
    }

    ...
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

2.解析错误视图；遍历所有的ErrorViewResolver(在上述代码的resolveErrorView方法中)，看谁能解析
3.默认的DefaultErrorViewResolver，作用是把响应状态码作为错误页的地址，error/5xx.html
4.响应error/5xx.html

# 4.异常处理原理

自定义错误页
- error/404.html error/5xx.html；有精确的错误状态码页面就匹配精确，没有就找 4xx.html；如果都没有就触发白页
@ControllerAdvice+@ExceptionHandler处理全局异常；底层是 ExceptionHandlerExceptionResolver 支持的

//处理所有controller发生的异常
@ControllerAdvice
@Slf4j
public class GlobalExceptionHandler {
    @ExceptionHandler({ArithmeticException.class, NullPointerException.class})
    //异常处理器和处理的异常类型
    public String handleException(Exception e){
        log.error("异常是：{}",e.getMessage());
        return "login";
    }
}

1
2
3
4
5
6
7
8
9
10
11

Dispatcher类中由于之前没有配置异常处理解析器，所以上面提到了默认没有执行所以exMv一直为空，现在由自己配置的异常处理解析器处理执行，返回页面

（后续自己配置的其他异常处理解析器也在这执行）

   @Nullable
    protected ModelAndView processHandlerException(HttpServletRequest request, HttpServletResponse response, @Nullable Object handler, Exception ex) throws Exception {
        request.removeAttribute(HandlerMapping.PRODUCIBLE_MEDIA_TYPES_ATTRIBUTE);
        ModelAndView exMv = null;
        if (this.handlerExceptionResolvers != null) {
            Iterator var6 = this.handlerExceptionResolvers.iterator();

            while(var6.hasNext()) {
                HandlerExceptionResolver resolver = (HandlerExceptionResolver)var6.next();
                exMv = resolver.resolveException(request, response, handler, ex);
                if (exMv != null) {
                    break;
                }
            }
        }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

@ResponseStatus+自定义异常；底层是ResponseStatusExceptionResolver,把responsestatus注解的信息拿过来底层调用response.sendError(statusCode, resolvedReason);告诉tomcat发送/error，后续是/error请求的处理逻辑

实现

@ResponseStatus(value= HttpStatus.FORBIDDEN,reason = "用户数量太多")
public class UserTooManyException extends RuntimeException {

    public  UserTooManyException(){

    }
    public  UserTooManyException(String message){
        super(message);
    }
}

1
2
3
4
5
6
7
8
9
10

@Controller
public class TableController {

    @GetMapping("/dynamic_table")
    public String dynamic_table(@RequestParam(value="pn",defaultValue = "1") Integer pn,Model model){
        //表格内容的遍历
         List<User> users = Arrays.asList(new User("zhangsan", "123456"),
                new User("lisi", "123444"),
                new User("haha", "aaaaa"),
                new User("hehe ", "aaddd"));
        model.addAttribute("users",users);

        if(users.size()>3){
            throw new UserTooManyException();//抛出自定义异常
        }
        return "table/dynamic_table";
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

Spring自家异常如 org.springframework.web.bind.MissingServletRequestParameterException，DefaultHandlerExceptionResolver 处理Spring自家异常。
- 也会执行response.sendError(400, ex.getMessage());结束当前请求，tomcat发送/error请求
自定义实现 HandlerExceptionResolver 处理异常；可以作为默认的全局异常处理规则

实现

@Order(value = Ordered.HIGHEST_PRECEDENCE) //优先级，数字越小优先级越高
@Component
public class CustomerHandlerExceptionResolver implements HandlerExceptionResolver {
    @Override
    public ModelAndView resolveException(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) {
        try {
            response.sendError(511,"我喜欢的错误");
        } catch (IOException e) {
            e.printStackTrace();
        }
        return new ModelAndView();
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13

ErrorViewResolver 实现自定义处理异常（大多数情况都不会重写，因为未处理过的底层都会被它处理）
- response.sendError()，error请求就会转给controller。
- 你的异常没有任何人能处理，tomcat底层调用response.sendError()，error请求就会转给controller。
- basicErrorController 要去的页面地址是 ErrorViewResolver解析的。

@Controller
@RequestMapping("${server.error.path:${error.path:/error}}")
public class BasicErrorController extends AbstractErrorController {

    ...

    @RequestMapping(produces = MediaType.TEXT_HTML_VALUE)
    public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response) {
        HttpStatus status = getStatus(request);
        Map<String, Object> model = Collections
                .unmodifiableMap(getErrorAttributes(request, getErrorAttributeOptions(request, MediaType.TEXT_HTML)));
        response.setStatus(status.value());
        ModelAndView modelAndView = resolveErrorView(request, response, status, model);
        return (modelAndView != null) ? modelAndView : new ModelAndView("error", model);
    }

    protected ModelAndView resolveErrorView(HttpServletRequest request, HttpServletResponse response, HttpStatus status,
            Map<String, Object> model) {
        //这里用到ErrorViewResolver接口
        for (ErrorViewResolver resolver : this.errorViewResolvers) {
            ModelAndView modelAndView = resolver.resolveErrorView(request, status, model);
            if (modelAndView != null) {
                return modelAndView;
            }
        }
        return null;
    }

    ...

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

# 5.原生组件注入

# 1.原生注解与Servlet注入

原生注解方式注入

@WebServlet(urlPatterns = "/my")
public class MyServlet extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        resp.getWriter().write("hello,myServlet");
    }
}

1
2
3
4
5
6
7

@Slf4j
@WebFilter(urlPatterns={"/css/*","/images/*"})
public class MyWebFilter implements Filter {

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
        log.info("MyWebFilter初始化完成");
    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        log.info("MyWebFilter开始执行");
        filterChain.doFilter(servletRequest,servletResponse);
    }

    @Override
    public void destroy() {
        log.info("MyWebFilter销毁");
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

@Slf4j
@WebListener
public class MyWebListener implements ServletContextListener {
    @Override
    public void contextInitialized(ServletContextEvent sce) {
        log.info("MyWebListener监听到项目初始化完成");

    }

    @Override
    public void contextDestroyed(ServletContextEvent sce) {
        log.info("MyWebListener监听到项目销毁");
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14

加上servlet扫描包注解

@ServletComponentScan("com.demo.boot.servlet")
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan("com.demo.boot") //三个注解相当于上面的SpringBootApplication
public class WebAdminApplication {
    public static void main(String[] args) {
        //返回IOC容器
        ConfigurableApplicationContext run = SpringApplication.run(WebAdminApplication.class, args);

    }
}

1
2
3
4
5
6
7
8
9
10
11

# 2.Spring方式注入

ServletRegistrationBean, FilterRegistrationBean, and ServletListenerRegistrationBean

@Configuration
public class MyRegister {
    @Bean
    public ServletRegistrationBean myServlet(){
        MyServlet myServlet = new MyServlet();
        return  new ServletRegistrationBean(myServlet,"/my");
    }

    @Bean
    public FilterRegistrationBean myFilter(){
        //return new FilterRegistrationBean(myFilter,myServlet());
        MyWebFilter myWebFilter = new MyWebFilter();
        FilterRegistrationBean<Filter> filterFilterRegistrationBean = new FilterRegistrationBean<>(myWebFilter);
        filterFilterRegistrationBean.setUrlPatterns(Arrays.asList("/css/*","/images/*"));
        return filterFilterRegistrationBean;
    }

    @Bean
    public ServletListenerRegistrationBean myListener(){
        MyWebListener myWebListener = new MyWebListener();
        return new ServletListenerRegistrationBean(myWebListener);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

# 3.DispatcherServlet注入原理

DispatcherServletAutoConfiguration配置类

@AutoConfigureOrder(Integer.MIN_VALUE)
@AutoConfiguration(
    after = {ServletWebServerFactoryAutoConfiguration.class}
)
@ConditionalOnWebApplication(
    type = Type.SERVLET
)
@ConditionalOnClass({DispatcherServlet.class})
public class DispatcherServletAutoConfiguration {
    public static final String DEFAULT_DISPATCHER_SERVLET_BEAN_NAME = "dispatcherServlet";
    public static final String DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME = "dispatcherServletRegistration";

    public DispatcherServletAutoConfiguration() {
    }


    @Configuration(
        proxyBeanMethods = false
    )
    @Conditional({DispatcherServletRegistrationCondition.class})
    @ConditionalOnClass({ServletRegistration.class})
    @EnableConfigurationProperties({WebMvcProperties.class})
    @Import({DispatcherServletConfiguration.class})
    protected static class DispatcherServletRegistrationConfiguration {
        protected DispatcherServletRegistrationConfiguration() {
        }

        @Bean(
            name = {"dispatcherServletRegistration"}
        )
        @ConditionalOnBean(
            value = {DispatcherServlet.class},
            name = {"dispatcherServlet"}
        )
        //注册DispatcherServlet的类
        public DispatcherServletRegistrationBean dispatcherServletRegistration(DispatcherServlet dispatcherServlet, WebMvcProperties webMvcProperties, ObjectProvider<MultipartConfigElement> multipartConfig) {
            DispatcherServletRegistrationBean registration = new DispatcherServletRegistrationBean(dispatcherServlet, webMvcProperties.getServlet().getPath());
            registration.setName("dispatcherServlet");
            registration.setLoadOnStartup(webMvcProperties.getServlet().getLoadOnStartup());
            multipartConfig.ifAvailable(registration::setMultipartConfig);
            return registration;
        }
    }

    @Configuration(
        proxyBeanMethods = false
    )
    @Conditional({DefaultDispatcherServletCondition.class})
    @ConditionalOnClass({ServletRegistration.class})
    @EnableConfigurationProperties({WebMvcProperties.class})
    protected static class DispatcherServletConfiguration {
        protected DispatcherServletConfiguration() {
        }

        @Bean(
            name = {"dispatcherServlet"}
        )
        //创建DispatcherServlet的类
        public DispatcherServlet dispatcherServlet(WebMvcProperties webMvcProperties) {
            DispatcherServlet dispatcherServlet = new DispatcherServlet();
            dispatcherServlet.setDispatchOptionsRequest(webMvcProperties.isDispatchOptionsRequest());
            dispatcherServlet.setDispatchTraceRequest(webMvcProperties.isDispatchTraceRequest());
            dispatcherServlet.setThrowExceptionIfNoHandlerFound(webMvcProperties.isThrowExceptionIfNoHandlerFound());
            dispatcherServlet.setPublishEvents(webMvcProperties.isPublishRequestHandledEvents());
            dispatcherServlet.setEnableLoggingRequestDetails(webMvcProperties.isLogRequestDetails());
            return dispatcherServlet;
        }

        @Bean
        @ConditionalOnBean({MultipartResolver.class})
        @ConditionalOnMissingBean(
            name = {"multipartResolver"}
        )
        public MultipartResolver multipartResolver(MultipartResolver resolver) {
            return resolver;
        }

        ...
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

所以当没有注册MyServlet，自动注册的DispatcherServlet会拦截/my请求，当注册MyServlet时，根据精准匹配原则由我们自己注册的Servlet会拦截处理请求。

注：当使用注解注册时，必须要加Servlet包扫描，否则不会扫描到注解，也就不会注册

# 6.嵌入式Servlet容器

# 1.原理

默认支持的WebServer

Tomcat, Jetty, or Undertow。
ServletWebServerApplicationContext容器启动寻找ServletWebServerFactory 并引导创建服务器。

原理：

SpringBoot应用启动发现当前是Web应用，web场景包-导入tomcat。
web应用会创建一个web版的IOC容器 ServletWebServerApplicationContext 。
ServletWebServerApplicationContext 启动的时候寻找 ServletWebServerFactory
SpringBoot底层默认有很多的WebServer工厂（ServletWebServerFactoryAutoConfiguration``ServletWebServerFactoryConfiguration内创建的Bean），如：
- TomcatServletWebServerFactory
- JettyServletWebServerFactory
- UndertowServletWebServerFactory
底层会有一个自动配置类ServletWebServerFactoryAutoConfiguration导入了ServletWebServerFactoryConfiguration
ServletWebServerFactoryConfiguration 根据动态判断系统中到底导入了那个Web服务器的包。（默认是web-starter导入tomcat包），容器中就有 TomcatServletWebServerFactory
TomcatServletWebServerFactory 创建出Tomcat服务器并启动；TomcatWebServer 的构造器拥有初始化方法initialize——this.tomcat.start();
内嵌服务器，与以前手动把启动服务器相比，改成现在使用代码启动（tomcat核心jar包存在）。

Spring Boot默认使用Tomcat服务器，若需更改其他服务器，则修改工程pom.xml：

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
    <exclusions>
        <exclusion>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
        </exclusion>
    </exclusions>
</dependency>

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-jetty</artifactId>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

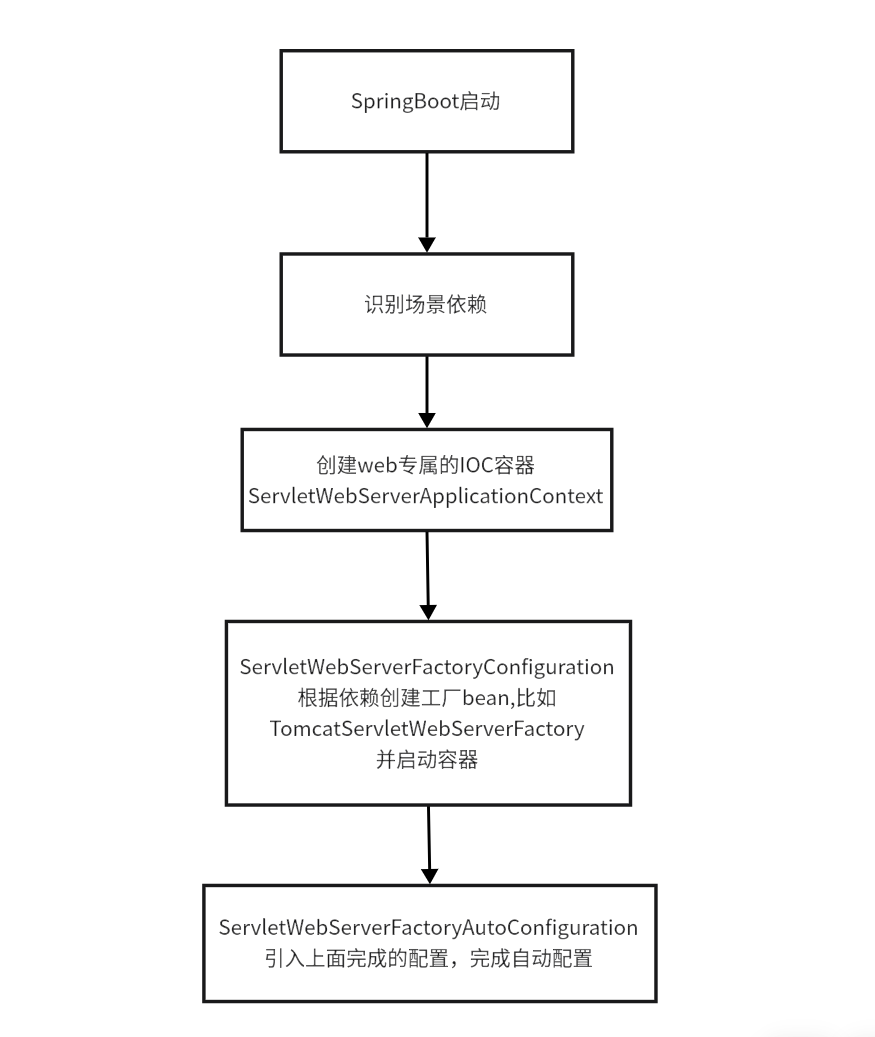

总结：SpringBoot 启动 Web 应用时，会先识别到 Web 场景依赖并导入 Tomcat 相关包，随后创建 Web 专属的 IOC 容器 ServletWebServerApplicationContext；该容器启动时会寻找 ServletWebServerFactory 类型的 Bean，而底层的自动配置类 ServletWebServerFactoryAutoConfiguration 会导入 ServletWebServerFactoryConfiguration，后者会根据项目中实际引入的 Web 服务器依赖（默认是 Tomcat），动态创建对应的服务器工厂 Bean（如 TomcatServletWebServerFactory）；最终由 TomcatServletWebServerFactory 创建并启动 Tomcat 服务器（核心是通过 TomcatWebServer 的初始化方法调用 tomcat.start()），实现了将 Web 服务器内嵌化，通过代码而非手动方式启动服务器的核心逻辑。

# 2.定制化Servlet容器

实现WebServerFactoryCustomizer<ConfigurableServletWebServerFactory>

把配置文件的值和ServletWebServerFactory进行绑定

@Component
public class CustomizationBean implements WebServerFactoryCustomizer<ConfigurableWebServerFactory> {
    @Override
    public void customize(ConfigurableWebServerFactory factory) {
        factory.setPort(8081);
    }
}

1
2
3
4
5
6
7

修改配置文件 server.xxx

直接自定义 ConfigurableServletWebServerFactory

/**
 * 直接自定义ConfigurableServletWebServerFactory Bean
 * 优先级：自定义Bean > WebServerFactoryCustomizer > 配置文件(server.xxx)
 */
@Configuration
public class WebServerConfig {

    @Bean
    public ConfigurableServletWebServerFactory webServerFactory() {
        // 1. 创建Tomcat服务器工厂（也可替换为Jetty/Undertow）
        TomcatServletWebServerFactory factory = new TomcatServletWebServerFactory();

        // 2. 基础配置（和定制器模式一致）
        factory.setPort(9999); // 端口
        factory.setContextPath("/app"); // 上下文路径
        factory.setSessionTimeout(60 * 60); // 会话超时1小时
        factory.setUriEncoding(java.nio.charset.StandardCharsets.UTF_8); // 编码

        // 3. Tomcat专属配置（连接器属性）
        factory.addConnectorCustomizers(connector -> {
            // 设置Tomcat连接器的URI编码
            connector.setURIEncoding("UTF-8");
            // 设置连接超时时间（毫秒）
            connector.setConnectionTimeout(30000);
            // 设置是否开启压缩
            connector.setCompression("on");
            // 设置压缩的最小响应大小（字节）
            connector.setCompressionMinSize(2048);
        });

        // 4. 错误页面配置（示例）
        factory.addErrorPages(new org.springframework.boot.web.server.ErrorPage(
                org.springframework.http.HttpStatus.NOT_FOUND, "/404.html")
        );

        return factory;
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

ConfigurableServletWebServerFactory的实现类
- TomcatServletWebServerFactory
- JettyServletWebServerFactory
- UndertowServletWebServerFactory

# 7.定制化原理-SpringBoot定制化组件的几种方式

# 1.修改配置文件

# 2.xxxxxCustomizer

比如上面的容器定制化案例

# 3.1xxxConfiguration+`@Bean`

编写自定义的配置类 xxxConfiguration + @Bean替换/增加容器中默认组件

@Configuration
public class MyConfig {
    @Bean
    public HiddenHttpMethodFilter hiddenHttpMethodFilter(){
        HiddenHttpMethodFilter hiddenHttpMethodFilter = new HiddenHttpMethodFilter();
        hiddenHttpMethodFilter.setMethodParam("_m");
        return hiddenHttpMethodFilter;
    }
}

1
2
3
4
5
6
7
8
9

# 4.WebMvcConfigurer+`@Bean`

Web应用编写一个配置类实现 WebMvcConfigurer 即可定制化web功能 + @Bean给容器中再扩展一些组件

@Configuration
public class registerInterceptor implements WebMvcConfigurer {
}

1
2
3

# 5.`@EnableWebMvc` + WebMvcConfigurer — `@Bean`

上面这三个可以全面接管SpringMVC，所有规则全部自己重新配置；实现定制和扩展功能

/**
 * 全面接管Spring MVC配置
 * @EnableWebMvc：关闭Spring Boot自动配置，完全自定义
 * WebMvcConfigurer：定制MVC核心规则
 */
@Configuration
@EnableWebMvc // 关键：开启全面接管，关闭自动配置
public class CustomWebMvcConfig implements WebMvcConfigurer {

    // ======================== 1. 自定义拦截器（示例：登录校验拦截器） ========================
    // 步骤1：定义拦截器
    public class LoginInterceptor extends HandlerInterceptorAdapter {
        @Override
        public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
            // 模拟登录校验逻辑：检查请求头中的token
            String token = request.getHeader("token");
            if (token == null || !"admin123".equals(token)) {
                response.setContentType("application/json;charset=UTF-8");
                response.getWriter().write("{\"code\":401,\"msg\":\"未登录，请先登录\"}");
                return false;
            }
            return true;
        }
    }

    // 步骤2：注册拦截器（通过WebMvcConfigurer重写方法）
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        // 注册登录拦截器，指定拦截路径和排除路径
        registry.addInterceptor(new LoginInterceptor())
                .addPathPatterns("/api/**") // 拦截所有/api开头的请求
                .excludePathPatterns("/api/login") // 排除登录接口
                .excludePathPatterns("/api/register"); // 排除注册接口
    }

    // ======================== 2. 静态资源配置（替代默认的classpath:/static/） ========================
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        // 自定义静态资源映射：访问/static/** 映射到classpath:/my-static/
        registry.addResourceHandler("/static/**")
                .addResourceLocations("classpath:/my-static/")
                .setCachePeriod(3600); // 静态资源缓存时间（秒）

        // 映射本地磁盘静态资源：访问/images/** 映射到D:/images/
        registry.addResourceHandler("/images/**")
                .addResourceLocations("file:D:/images/");
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

原理：

1.WebMvcAutoConfiguration默认的SpringMVC的自动配置功能类，如静态资源、欢迎页等。

2.一旦使用 @EnableWebMvc ，会@Import(DelegatingWebMvcConfiguration.class)。

3.DelegatingWebMvcConfiguration的作用，只保证SpringMVC最基本的使用

把所有系统中的WebMvcConfigurer拿过来，所有功能的定制都是这些WebMvcConfigurer合起来一起生效。
自动配置了一些非常底层的组件，如RequestMappingHandlerMapping，这些组件依赖的组件都是从容器中获取。如：public class DelegatingWebMvcConfiguration extends WebMvcConfigurationSupport。

4.WebMvcAutoConfiguration里面的配置要能生效必须@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)。

5.@EnableWebMvc 导致了WebMvcAutoConfiguration 没有生效。

原理分析套路

场景starter - xxxxAutoConfiguration - 导入xxx组件 - 绑定xxxProperties - 绑定配置文件项。

# 04.SpringBoot-Web开发3

# 1.拦截器

# 1.实现

# 2.原理

# 2.文件上传

# 1.实现

# 2.原理

# 3.错误处理

# 1.默认错误处理机制

# 2.各种组件的功能

# 3.异常处理步骤

# 4.异常处理原理

# 5.原生组件注入

# 1.原生注解与Servlet注入

# 2.Spring方式注入

# 3.DispatcherServlet注入原理

# 6.嵌入式Servlet容器

# 1.原理

# 2.定制化Servlet容器

# 7.定制化原理-SpringBoot定制化组件的几种方式

# 1.修改配置文件

# 2.xxxxxCustomizer

# 3.1xxxConfiguration+@Bean

# 4.WebMvcConfigurer+@Bean

# 5.@EnableWebMvc + WebMvcConfigurer — @Bean

# 3.1xxxConfiguration+`@Bean`

# 4.WebMvcConfigurer+`@Bean`

# 5.`@EnableWebMvc` + WebMvcConfigurer — `@Bean`
