09.SpringBoot-原理解析

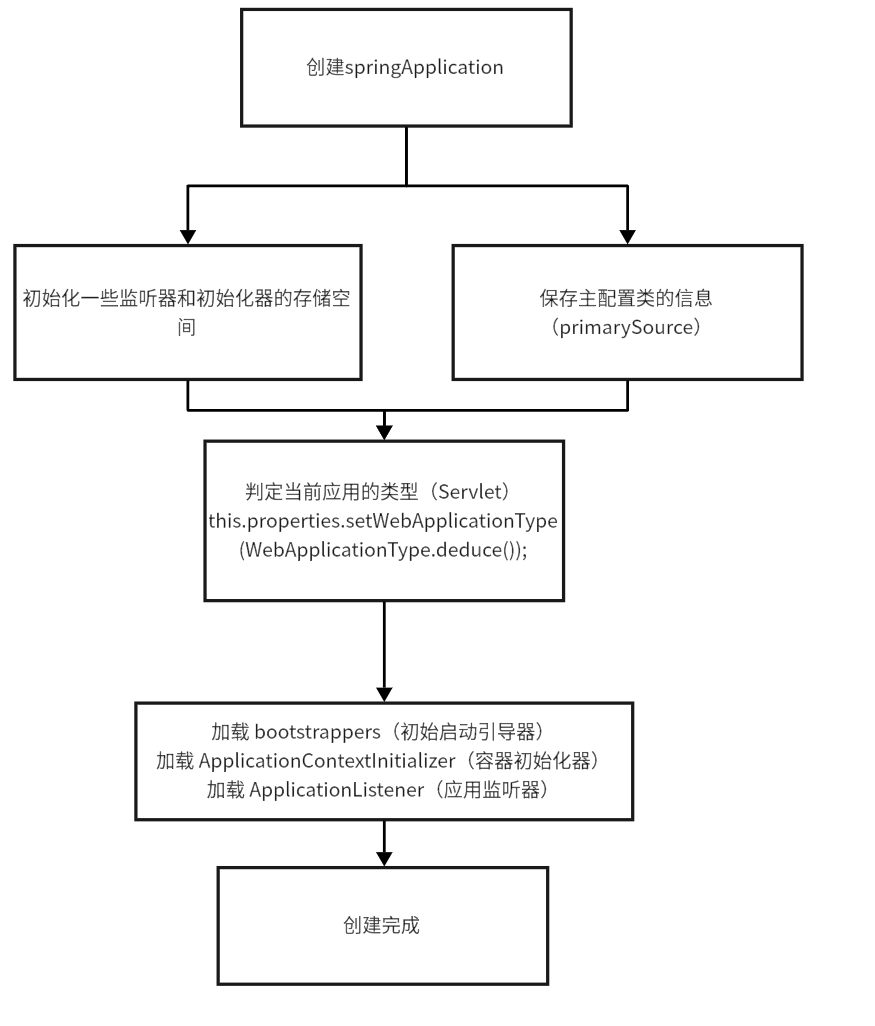

1.SpringApplication创建初始化流程

1.创建SpringApplication

• 保存一些信息

• 判定当前应用的类型（Servlet）

• 加载 bootstrappers（初始启动引导器）

  • 从 META-INF/spring.factories 文件中加载所有 org.springframework.boot.Bootstrapper 实现类，存入 List<Bootstrapper>。
  • 作用：在应用启动最早期执行一些引导性操作（如环境预处理、配置加载等）。

• 加载 ApplicationContextInitializer（容器初始化器）

  • 从 spring.factories 文件中查找所有 ApplicationContextInitializer 实现类，存入 List<ApplicationContextInitializer<?>>。
  • 作用：在 ApplicationContext 刷新（refresh()）之前，对容器做自定义初始化（如注册 Bean 定义、激活配置文件等）。

• 加载 ApplicationListener（应用监听器）

  • 从 spring.factories 文件中查找所有 ApplicationListener 实现类，存入 List<ApplicationListener<?>>。
  • 作用：监听 Spring Boot 应用生命周期事件（如 ApplicationStartedEvent、ApplicationReadyEvent 等），执行响应逻辑。

Spring Boot应用的启动类：

@SpringBootApplication
public class SpringbootStarterTestApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootStarterTestApplication.class, args);
    }

}

public class SpringApplication {

    ....

    public SpringApplication(Class<?>... primarySources) {
        this((ResourceLoader)null, primarySources);
    }

    public SpringApplication(@Nullable ResourceLoader resourceLoader, Class<?>... primarySources) {
        this.addCommandLineProperties = true;
        this.addConversionService = true;
        this.headless = true;
        this.initializers = new ArrayList();
        this.listeners = new ArrayList();
        this.additionalProfiles = Collections.emptySet();
        this.applicationContextFactory = ApplicationContextFactory.DEFAULT;
        this.applicationStartup = ApplicationStartup.DEFAULT;
        this.properties = new ApplicationProperties();
        this.resourceLoader = resourceLoader;
        Assert.notNull(primarySources, "'primarySources' must not be null");
        this.primarySources = new LinkedHashSet(Arrays.asList(primarySources));
        //WebApplicationType是枚举类，有NONE,SERVLET,REACTIVE,
        //下行webApplicationType是SERVLET
        this.properties.setWebApplicationType(WebApplicationType.deduce());
        //初始启动引导器，去spring.factories文件中找org.springframework.boot.Bootstrapper(没找到则为空)
        this.bootstrapRegistryInitializers = new ArrayList(this.getSpringFactoriesInstances(BootstrapRegistryInitializer.class));
        //去spring.factories找 ApplicationContextInitializer
        this.setInitializers(this.getSpringFactoriesInstances(ApplicationContextInitializer.class));
        //去spring.factories找 ApplicationListener
        this.setListeners(this.getSpringFactoriesInstances(ApplicationListener.class));
        this.mainApplicationClass = this.deduceMainApplicationClass();
    }
    ....

}

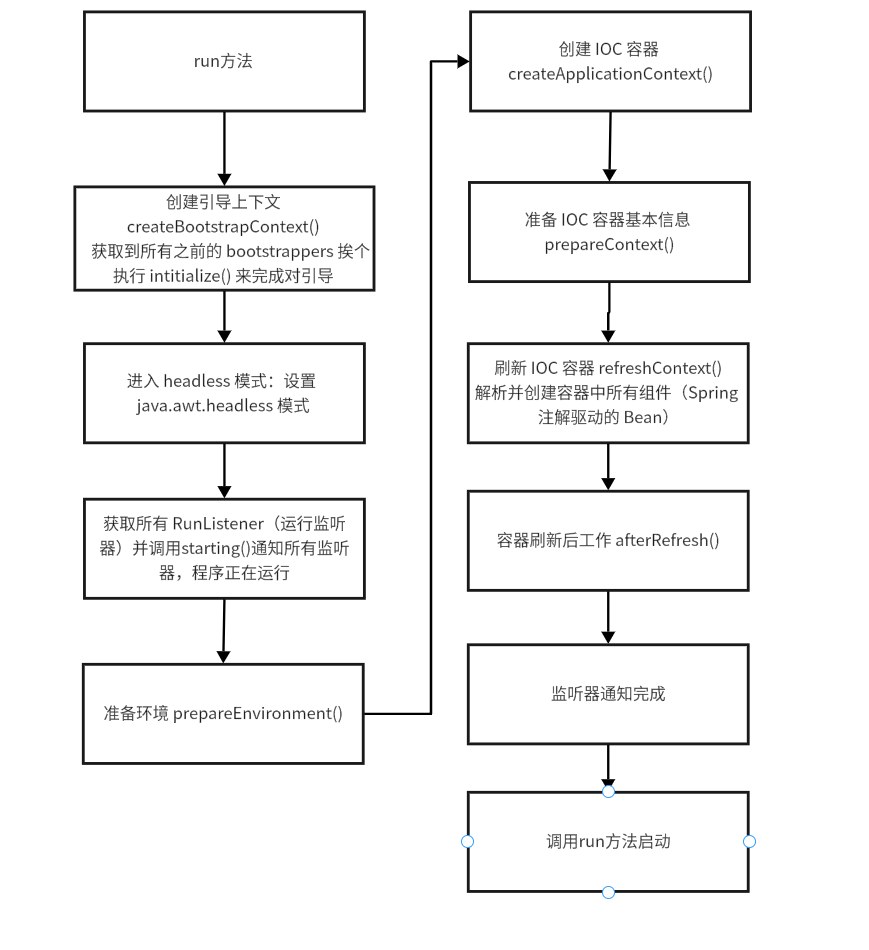

2.run方法

1. 记录应用启动时间

2. 创建引导上下文 createBootstrapContext()

   • 获取所有 bootstrappers，逐个执行 initialize()，完成引导上下文环境设置

3. 进入 headless 模式：设置 java.awt.headless 模式

4. 获取所有 RunListener（运行监听器）

   • 通过 getSpringFactoriesInstances 从 spring.factories 中加载 SpringApplicationRunListener

5. 遍历 SpringApplicationRunListener，调用 starting() 方法

   • 通知所有监听器：应用正在启动中

6. 保存命令行参数：封装为 ApplicationArguments

7. 准备环境 prepareEnvironment()

   • 创建 / 返回基础环境对象（如 StandardServletEnvironment）
   • 读取所有配置源的配置属性值
   • 绑定环境信息，调用 listener.environmentPrepared()，通知监听器环境已准备完成

8. 创建 IOC 容器 createApplicationContext()

   • 根据应用类型（如 Servlet）创建对应容器，如 AnnotationConfigServletWebServerApplicationContext

9. 准备 IOC 容器基本信息 prepareContext()

   • 保存环境信息到容器
   • 执行 IOC 容器后置处理流程
   • 执行 ApplicationContextInitializer：遍历所有初始化器，调用 initialize() 对容器做扩展
   • 调用 listener.contextPrepared()：通知监听器容器已准备好
   • 调用 listener.contextLoaded()：通知监听器容器已加载完成

10. 刷新 IOC 容器 refreshContext()

    • 解析并创建容器中所有组件（Spring 注解驱动的 Bean）

11. 容器刷新后工作 afterRefresh()

12. 通知监听器 started：调用 listeners.started(context)，告知应用已启动完成

13. 执行所有 runners callRunners()

    • 从容器中获取 ApplicationRunner 和 CommandLineRunner
    • 合并所有 runner 并按 @Order 排序
    • 遍历所有 runner，调用 run() 方法

14. 异常处理

    • 若以上步骤出现异常，调用 listener.failed()，通知监听器启动失败

15. 通知监听器 running：调用 listeners.running(context)，告知应用正在运行

    • 若 running 阶段出现问题，继续调用 listener.failed()，通知启动失败

public class SpringApplication {

    ...

    public ConfigurableApplicationContext run(String... args) {
        StopWatch stopWatch = new StopWatch();//开始计时器
        stopWatch.start();//开始计时

        //1.
        //创建引导上下文（Context环境）createBootstrapContext()
        //获取到所有之前的 bootstrappers 挨个执行 intitialize() 来完成对引导启动器上下文环境设置
        DefaultBootstrapContext bootstrapContext = createBootstrapContext();

        //2.到最后该方法会返回这context
        ConfigurableApplicationContext context = null;

        //3.让当前应用进入headless模式
        configureHeadlessProperty();

        //4.获取所有 RunListener（运行监听器）,为了方便所有Listener进行事件感知
        SpringApplicationRunListeners listeners = getRunListeners(args);

        //5. 遍历 SpringApplicationRunListener 调用 starting 方法；
        // 相当于通知所有感兴趣系统正在启动过程的人，项目正在 starting。
        listeners.starting(bootstrapContext, this.mainApplicationClass);
        try {
            //6.保存命令行参数 ApplicationArguments
            ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);

            //7.准备环境
            ConfigurableEnvironment environment = prepareEnvironment(listeners, bootstrapContext, applicationArguments);
            configureIgnoreBeanInfo(environment);

            /*打印标志
              .   ____          _            __ _ _
             /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
            ( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
             \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
              '  |____| .__|_| |_|_| |_\__, | / / / /
             =========|_|==============|___/=/_/_/_/
             :: Spring Boot ::                (v2.4.2)
            */
            Banner printedBanner = printBanner(environment);

            // 创建IOC容器（createApplicationContext（））
            // 根据项目类型webApplicationType（NONE,SERVLET,REACTIVE）创建容器，
            // 当前会创建 AnnotationConfigServletWebServerApplicationContext
            context = createApplicationContext();
            context.setApplicationStartup(this.applicationStartup);

            //8.准备ApplicationContext IOC容器的基本信息
            prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner);
            //9.刷新IOC容器,创建容器中的所有组件,Spring框架的内容
            refreshContext(context);
            //该方法没内容，大概为将来填入
            afterRefresh(context, applicationArguments);
            stopWatch.stop();//停止计时
            if (this.logStartupInfo) {//this.logStartupInfo默认是true
                new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
            }
            //10.
            listeners.started(context);

            //11.调用所有runners
            callRunners(context, applicationArguments);
        }
        catch (Throwable ex) {
            //13.
            handleRunFailure(context, ex, listeners);
            throw new IllegalStateException(ex);
        }

        try {
            //12.
            listeners.running(context);
        }
        catch (Throwable ex) {
            //13.
            handleRunFailure(context, ex, null);
            throw new IllegalStateException(ex);
        }
        return context;
    }

    //1.
    private DefaultBootstrapContext createBootstrapContext() {
        DefaultBootstrapContext bootstrapContext = new DefaultBootstrapContext();
        this.bootstrappers.forEach((initializer) -> initializer.intitialize(bootstrapContext));
        return bootstrapContext;
    }

    //3.
       private void configureHeadlessProperty() {
        //this.headless默认为true
        System.setProperty(SYSTEM_PROPERTY_JAVA_AWT_HEADLESS,
                System.getProperty(SYSTEM_PROPERTY_JAVA_AWT_HEADLESS, Boolean.toString(this.headless)));
    }

    private static final String SYSTEM_PROPERTY_JAVA_AWT_HEADLESS = "java.awt.headless";

    //4.
    private SpringApplicationRunListeners getRunListeners(String[] args) {
        Class<?>[] types = new Class<?>[] { SpringApplication.class, String[].class };
        //getSpringFactoriesInstances 去 spring.factories 找 SpringApplicationRunListener
        return new SpringApplicationRunListeners(logger,
                getSpringFactoriesInstances(SpringApplicationRunListener.class, types, this, args),
                this.applicationStartup);
    }

    //7.准备环境
    private ConfigurableEnvironment prepareEnvironment(SpringApplicationRunListeners listeners,
            DefaultBootstrapContext bootstrapContext, ApplicationArguments applicationArguments) {
        // Create and configure the environment
        //返回或者创建基础环境信息对象，如：StandardServletEnvironment, StandardReactiveWebEnvironment
        ConfigurableEnvironment environment = getOrCreateEnvironment();
        //配置环境信息对象,读取所有的配置源的配置属性值。
        configureEnvironment(environment, applicationArguments.getSourceArgs());
        //绑定环境信息
        ConfigurationPropertySources.attach(environment);
        //7.1 通知所有的监听器当前环境准备完成
        listeners.environmentPrepared(bootstrapContext, environment);
        DefaultPropertiesPropertySource.moveToEnd(environment);
        configureAdditionalProfiles(environment);
        bindToSpringApplication(environment);
        if (!this.isCustomEnvironment) {
            environment = new EnvironmentConverter(getClassLoader()).convertEnvironmentIfNecessary(environment,
                    deduceEnvironmentClass());
        }
        ConfigurationPropertySources.attach(environment);
        return environment;
    }

    //8.
    private void prepareContext(DefaultBootstrapContext bootstrapContext, ConfigurableApplicationContext context,
            ConfigurableEnvironment environment, SpringApplicationRunListeners listeners,
            ApplicationArguments applicationArguments, Banner printedBanner) {
        //保存环境信息
        context.setEnvironment(environment);
        //IOC容器的后置处理流程
        postProcessApplicationContext(context);
        //应用初始化器
        applyInitializers(context);
        //8.1 遍历所有的 listener 调用 contextPrepared。
        //EventPublishRunListenr通知所有的监听器contextPrepared
        listeners.contextPrepared(context);
        bootstrapContext.close(context);
        if (this.logStartupInfo) {
            logStartupInfo(context.getParent() == null);
            logStartupProfileInfo(context);
        }
        // Add boot specific singleton beans
        ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
        beanFactory.registerSingleton("springApplicationArguments", applicationArguments);
        if (printedBanner != null) {
            beanFactory.registerSingleton("springBootBanner", printedBanner);
        }
        if (beanFactory instanceof DefaultListableBeanFactory) {
            ((DefaultListableBeanFactory) beanFactory)
                    .setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
        }
        if (this.lazyInitialization) {
            context.addBeanFactoryPostProcessor(new LazyInitializationBeanFactoryPostProcessor());
        }
        // Load the sources
        Set<Object> sources = getAllSources();
        Assert.notEmpty(sources, "Sources must not be empty");
        load(context, sources.toArray(new Object[0]));
        //8.2
        listeners.contextLoaded(context);
    }

    //11.调用所有runners
    private void callRunners(ApplicationContext context, ApplicationArguments args) {
        List<Object> runners = new ArrayList<>();

        //获取容器中的 ApplicationRunner
        runners.addAll(context.getBeansOfType(ApplicationRunner.class).values());
        //获取容器中的  CommandLineRunner
        runners.addAll(context.getBeansOfType(CommandLineRunner.class).values());
        //合并所有runner并且按照@Order进行排序
        AnnotationAwareOrderComparator.sort(runners);
        //遍历所有的runner。调用 run 方法
        for (Object runner : new LinkedHashSet<>(runners)) {
            if (runner instanceof ApplicationRunner) {
                callRunner((ApplicationRunner) runner, args);
            }
            if (runner instanceof CommandLineRunner) {
                callRunner((CommandLineRunner) runner, args);
            }
        }
    }

    //13.
    private void handleRunFailure(ConfigurableApplicationContext context, Throwable exception,
            SpringApplicationRunListeners listeners) {
        try {
            try {
                handleExitCode(context, exception);
                if (listeners != null) {
                    //14.
                    listeners.failed(context, exception);
                }
            }
            finally {
                reportFailure(getExceptionReporters(context), exception);
                if (context != null) {
                    context.close();
                }
            }
        }
        catch (Exception ex) {
            logger.warn("Unable to close ApplicationContext", ex);
        }
        ReflectionUtils.rethrowRuntimeException(exception);
    }

    ...
}

核心总结

Spring Boot 启动流程本质是{环境准备 → 容器创建 → 组件加载 → 事件通知}的完整链路：

• 所有扩展组件（Bootstrapper/Initializer/Listener/Runner）都通过 SPI 机制（spring.factories） 加载，实现高度可插拔
• 事件驱动贯穿全程：通过 SpringApplicationRunListener 在关键节点（starting/environmentPrepared/contextPrepared/started/running）通知外部组件，实现生命周期感知
• 容器刷新是核心：refreshContext() 完成所有 Bean 的实例化、依赖注入和初始化，是 Spring IOC 容器的核心工作

---

2.自定义监听组件

MyApplicationContextInitializer（初始化执行）

package com.demo.config;

import org.springframework.context.ApplicationContextInitializer;
import org.springframework.context.ConfigurableApplicationContext;

public class MyApplicationContextInitializer implements ApplicationContextInitializer {
    @Override
    public void initialize(ConfigurableApplicationContext applicationContext) {
        System.out.println("MyApplicationContextInitializer ....initialize.... ");
    }
}

MyApplicationListener （监听应用的生命周期，如 ApplicationStartedEvent、ApplicationReadyEvent 等）

package com.demo.config;

import org.springframework.context.ApplicationEvent;
import org.springframework.context.ApplicationListener;

public class MyApplicationListener implements ApplicationListener {
    @Override
    public void onApplicationEvent(ApplicationEvent event) {
        System.out.println("MyApplicationListener.....onApplicationEvent...");
    }
}

MySpringApplicationRunListener（运行监听器，通知所有监听器运行的怎么样了）

package com.demo.config;


import org.jspecify.annotations.Nullable;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.SpringApplicationRunListener;
import org.springframework.boot.bootstrap.ConfigurableBootstrapContext;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.core.env.ConfigurableEnvironment;

import java.time.Duration;

public class MySpringApplicationRunListener implements SpringApplicationRunListener {

    private SpringApplication application;
    public MySpringApplicationRunListener(SpringApplication application, String[] args){
        this.application = application;
    }

    @Override
    public void starting(ConfigurableBootstrapContext bootstrapContext) {
        System.out.println("MySpringApplicationRunListener....starting....");
    }

    @Override
    public void environmentPrepared(ConfigurableBootstrapContext bootstrapContext, ConfigurableEnvironment environment) {
        System.out.println("MySpringApplicationRunListener....environmentPrepared....");
    }

    @Override
    public void started(ConfigurableApplicationContext context, @Nullable Duration timeTaken) {
        System.out.println("MySpringApplicationRunListener....started....");
    }

    @Override
    public void ready(ConfigurableApplicationContext context, @Nullable Duration timeTaken) {
        System.out.println("MySpringApplicationRunListener....ready....");
    }

    @Override
    public void contextPrepared(ConfigurableApplicationContext context) {
        System.out.println("MySpringApplicationRunListener....contextPrepared....");

    }

    @Override
    public void contextLoaded(ConfigurableApplicationContext context) {
        System.out.println("MySpringApplicationRunListener....contextLoaded....");
    }


    @Override
    public void failed(ConfigurableApplicationContext context, Throwable exception) {
        System.out.println("MySpringApplicationRunListener....failed....");
    }
}

MyApplicationRunner和MyCommandLineRunner（调用run方法）

package com.demo.config;

import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;


@Order(1)
@Component//放入容器
public class MyApplicationRunner implements ApplicationRunner {
    @Override
    public void run(ApplicationArguments args) throws Exception {
        System.out.println("MyApplicationRunner...run...");
    }
}

package com.demo.config;

import org.springframework.boot.CommandLineRunner;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;
/**
 * 应用启动做一个一次性事情
 */
@Order(2)
@Component//放入容器
public class MyCommandLineRunner implements CommandLineRunner {
    @Override
    public void run(String... args) throws Exception {
        System.out.println("MyCommandLineRunner....run....");
    }
}

spring.factories

org.springframework.context.ApplicationContextInitializer=\
  com.demo.config.MyApplicationContextInitializer

org.springframework.context.ApplicationListener=\
  com.demo.config.MyApplicationListener

org.springframework.boot.SpringApplicationRunListener=\
  com.demo.config.MySpringApplicationRunListener

结果

MyApplicationContextInitializer ....initialize....
MyApplicationListener.....onApplicationEvent...
MySpringApplicationRunListener....contextPrepared....
2026-03-14T16:49:58.458+08:00  INFO 8864 --- [springboot-starter-test] [           main] c.demo.SpringbootStarterTestApplication  : Starting SpringbootStarterTestApplication using Java 24.0.2 with PID 8864 (D:\code1\StarterTest\springboot-starter-test\target\classes started by 25133 in D:\code1\StarterTest)
2026-03-14T16:49:58.460+08:00  INFO 8864 --- [springboot-starter-test] [           main] c.demo.SpringbootStarterTestApplication  : No active profile set, falling back to 1 default profile: "default"
MyApplicationListener.....onApplicationEvent...
MySpringApplicationRunListener....contextLoaded....
2026-03-14T16:49:59.098+08:00  INFO 8864 --- [springboot-starter-test] [           main] o.s.boot.tomcat.TomcatWebServer          : Tomcat initialized with port 8888 (http)
2026-03-14T16:49:59.108+08:00  INFO 8864 --- [springboot-starter-test] [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2026-03-14T16:49:59.108+08:00  INFO 8864 --- [springboot-starter-test] [           main] o.apache.catalina.core.StandardEngine    : Starting Servlet engine: [Apache Tomcat/11.0.18]
2026-03-14T16:49:59.134+08:00  INFO 8864 --- [springboot-starter-test] [           main] b.w.c.s.WebApplicationContextInitializer : Root WebApplicationContext: initialization completed in 623 ms
2026-03-14T16:49:59.373+08:00  INFO 8864 --- [springboot-starter-test] [           main] o.s.boot.tomcat.TomcatWebServer          : Tomcat started on port 8888 (http) with context path '/'
MyApplicationListener.....onApplicationEvent...
MyApplicationListener.....onApplicationEvent...
2026-03-14T16:49:59.377+08:00  INFO 8864 --- [springboot-starter-test] [           main] c.demo.SpringbootStarterTestApplication  : Started SpringbootStarterTestApplication in 1.242 seconds (process running for 1.687)
MyApplicationListener.....onApplicationEvent...
MyApplicationListener.....onApplicationEvent...
MySpringApplicationRunListener....started....
MyApplicationRunner...run...
MyCommandLineRunner....run....
MyApplicationListener.....onApplicationEvent...
MyApplicationListener.....onApplicationEvent...
MySpringApplicationRunListener....ready....

---
